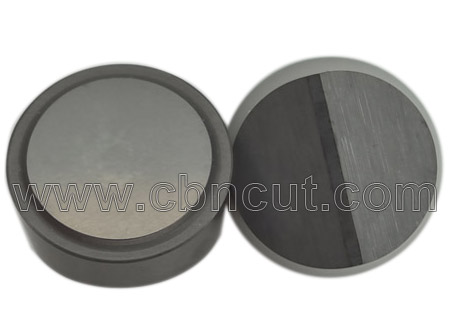

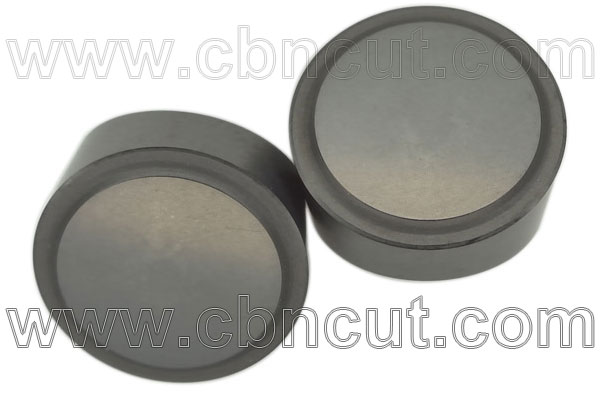

RCGX Chip Breaker CBN Insert
RCGX chip breaker solid CBN inserts used for turning cast iron rollers,alloy rollers,carbide rollers,HSS(High Speed Steel) rollers and pump parts also the other hard workpieces.
CGX090700 RCGX120700 RCGX150700 RCGX151000 RCGX191000 RCGX200700 RCGX201000 RCGX250700 RCGX251200 RCGX321000
RCMX090700 RCMX120700 RCMX150700 RCMX151000 RCMX191000 RCMX200700 RCMX201000 RCGX250700 RCMX251200 RCMX321000
Our RCMX and RCGX CBN insert edge preparation can be S01020 S02020 S05020 S10020 S10015 S20010 S20015 among them the S05020 and S10020 use mostly since generally the RCGX or RCGX solid CBN inserts use bigger chamfer for roller slot turning the chamfer width of 0.5mm and 1.0mm most commonly used.
| ISO | IC | S | b |
| RCGX060400 | 6.35 | 4.76 | 0.8 |
| RCGX060600 | 6.35 | 6.35 | 0.8 |
| RCGX090700 | 9.525 | 7.94 | 1 |
| RCGX120700 | 12.7 | 7.94 | 2 |
| RCGX150700 | 15.875 | 7.94 | 2 |
| RCGX151000 | 15.875 | 10.0 | 2 |
| RCGX190700 | 19.05 | 7.94 | 2 |
| RCGX191000 | 19.05 | 10.0 | 2 |
| RCGX200700 | 20.0 | 7.94 | 2 |
| RCGX201200 | 20.0 | 12.0 | 2 |
| RCGX251200 | 25.4 | 12.0 | 2 |
| RCGX311000 | 31.75 | 10.0 | 14 |
