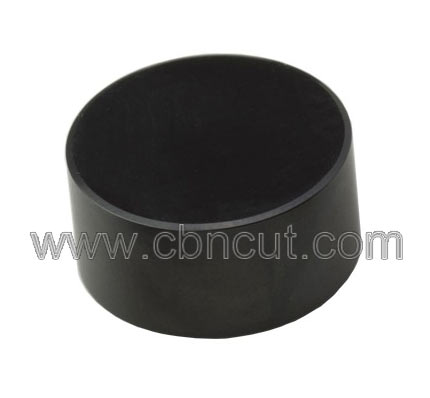

RCGN RCMN Solid CBN Insert
RCGN and RCMN solid CBN inserts for turning and milling cast iron,alloy steel and hardened steel workpieces like rollers,pump and automotive brakedisk etc.
RCGN060300 RCGN060400 RCGN090400 RCGN120600 RCGN120700 RCGN150700
RCMN060300 RCMN060400 RCMN090400 RCMN120600 RCMN120700 RCMN150700

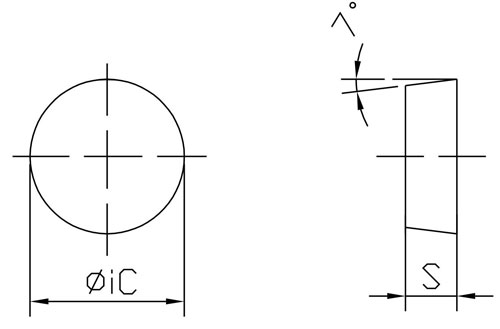

| ISO | L | IC | S |
| RCGN 060300 | 6.35 | 6.35 | 3.18 |
| RCGN 060400 | 6.35 | 6.35 | 4.76 |
| RCGN 090300 | 9.525 | 9.525 | 3.18 |
| RCGN 090400 | 9.525 | 9.525 | 4.76 |
| RCGN 120400 | 12.7 | 12.7 | 4.76 |
| RCGN 120600 | 12.7 | 12.7 | 6.35 |
| RCGN 120700 | 12.7 | 12.7 | 7.94 |
| RCGN 150700 | 15.875 | 15.875 | 7.94 |
| RCGN 160700 | 16.0 | 16.0 | 7.94 |
| RCGN 190400 | 19.05 | 19.05 | 4.76 |
| RCGN 190700 | 19.05 | 19.05 | 7.94 |
| RCGN 200700 | 20.0 | 20.0 | 7.94 |
| RCGN 200800 | 20.0 | 20.0 | 8.00 |
| RCGN 201000 | 20.0 | 20.0 | 10.00 |
| RCGN 250600 | 25.4 | 25.4 | 6.35 |
| RCGN 250700 | 25.4 | 25.4 | 7.94 |
| RCGN 250800 | 25.4 | 25.4 | 8.00 |
| RCGN 251000 | 25.4 | 25.4 | 10.00 |
| RCGN 251200 | 25.4 | 25.4 | 12.00 |
