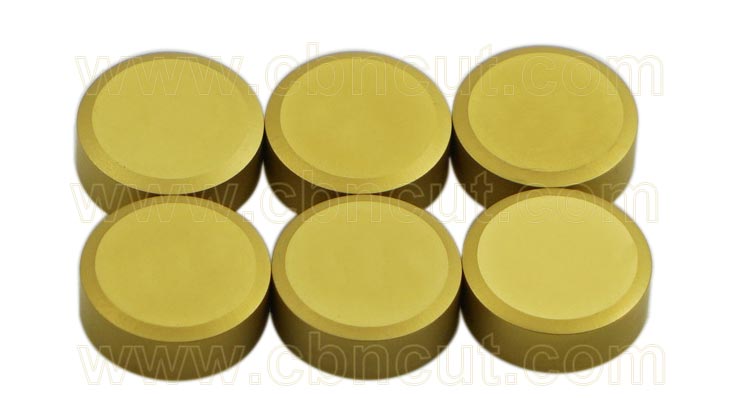

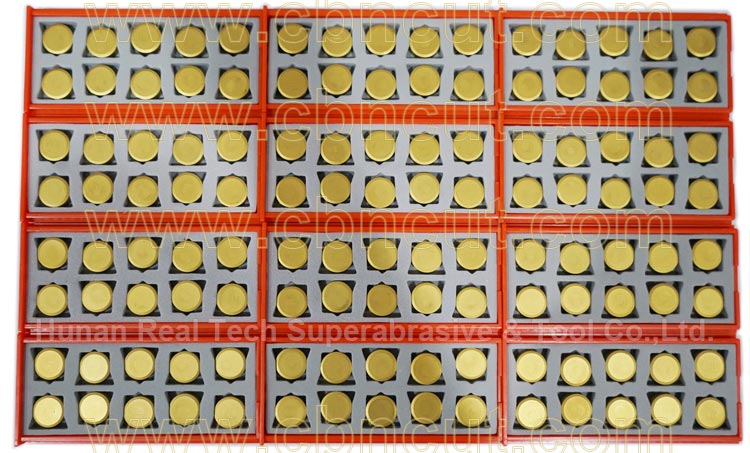

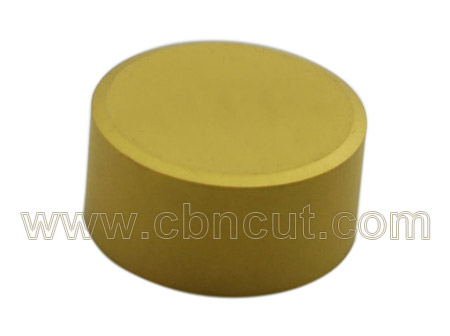

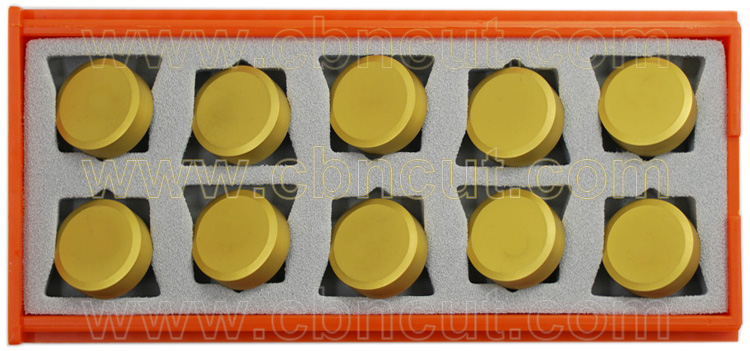

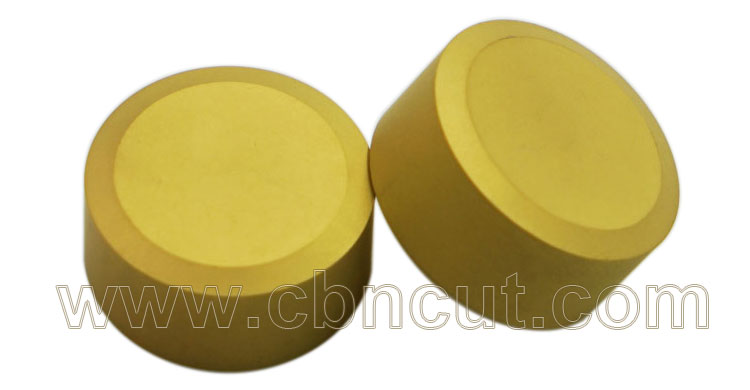

TIN Coated RNGN Solid CBN Inserts

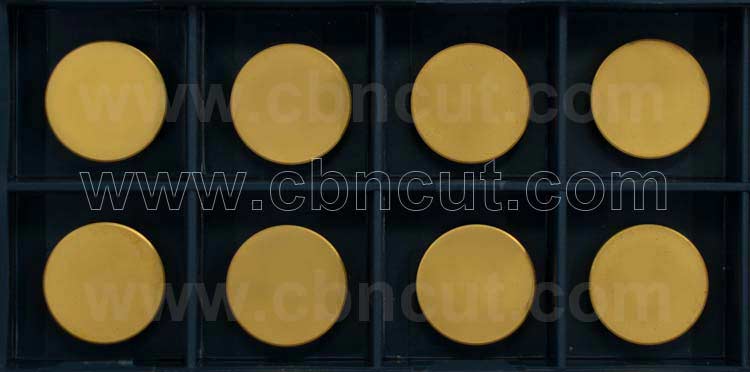

TIN and TIALN CBN C06 coated inserts makes the CBN inserts more wearable when in turning and milling bearing steel,hardened steel and alloy steel workpiece cutting.
Customer used these solid CBN inserts for high Ni and high Cr alloy cast iron,white cast iron milling and turning,also used for hardened steel cutting applications.
Some of the popular ordered sizes of coated solid CBN inserts:

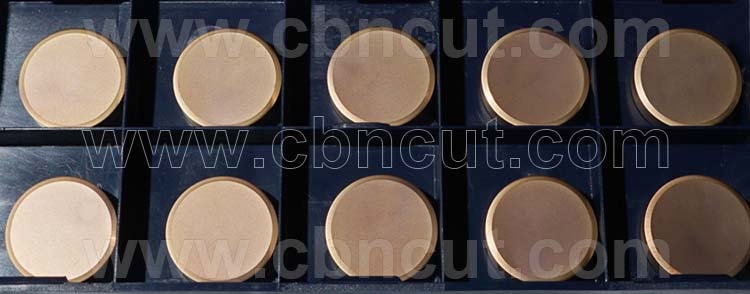

RNGN090300 RNGN120400 RNGN120700 RNGN150700 RNGN190400 RNGN190700 RNGN201000 RNGN251000
RNMN090300 RNMN120400 RNMN120700 RNMN150700 RNMN190400 RNMN190700 RNMN201000 RNMN251000
Mainly sizes of solid CBN insert,solid PCBN inserts chart as follows,the other sizes and shapes also available upon request,please feel free to send E-mail to us or chat with us through WhatsApp +86-13875858570,we will send you reply immediately with our solutions,we will also send you free samples for testing if you can send us the insert size you are using or tell us your cutting condition.
Our E-mail address is : sales@cbncut.com
| ISO | L | IC | S |
| RNGN 060300 | 6.35 | 6.35 | 3.18 |
| RNGN 060400 | 6.35 | 6.35 | 4.76 |
| RNGN 090300 | 9.525 | 9.525 | 3.18 |
| RNGN 090400 | 9.525 | 9.525 | 4.76 |
| RNGN 120400 | 12.7 | 12.7 | 4.76 |
| RNGN 120600 | 12.7 | 12.7 | 6.35 |
| RNGN 120700 | 12.7 | 12.7 | 7.94 |
| RNGN 150700 | 15.875 | 15.875 | 7.94 |
| RNGN 160700 | 16.0 | 16.0 | 7.94 |
| RNGN 190400 | 19.05 | 19.05 | 4.76 |
| RNGN 190700 | 19.05 | 19.05 | 7.94 |
| RNGN 200700 | 20.0 | 20.0 | 7.94 |
| RNGN 200800 | 20.0 | 20.0 | 8.00 |
| RNGN 201000 | 20.0 | 20.0 | 10.00 |
| RNGN 250600 | 25.4 | 25.4 | 6.35 |
| RNGN 250700 | 25.4 | 25.4 | 7.94 |
| RNGN 250800 | 25.4 | 25.4 | 8.00 |
| RNGN 251000 | 25.4 | 25.4 | 10.00 |
| RNGN 251200 | 25.4 | 25.4 | 12.00 |
