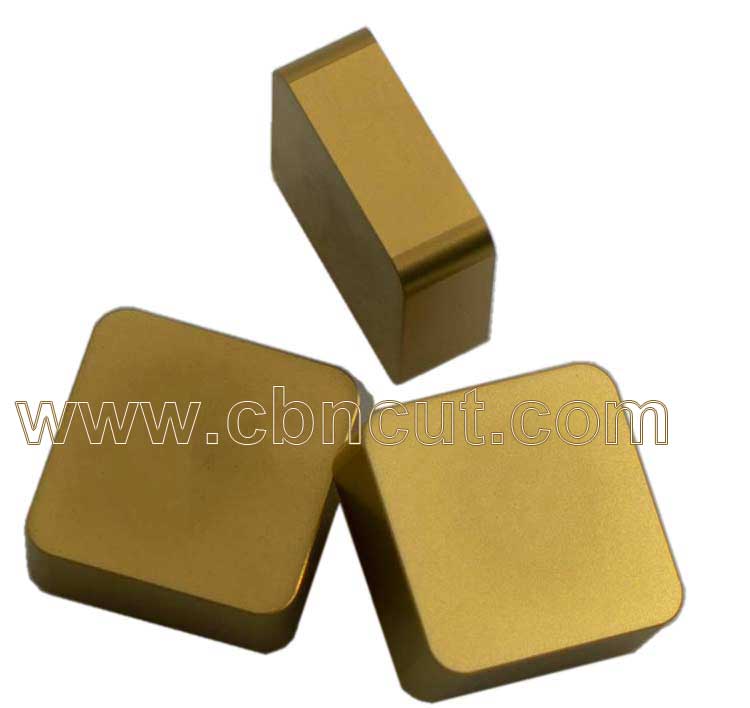

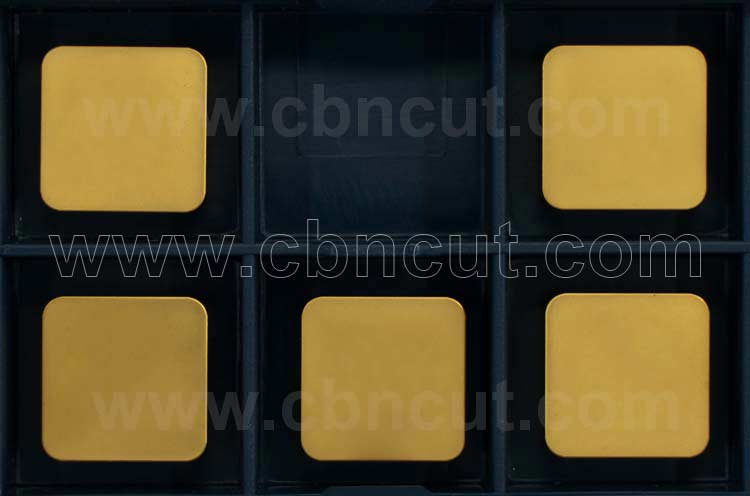

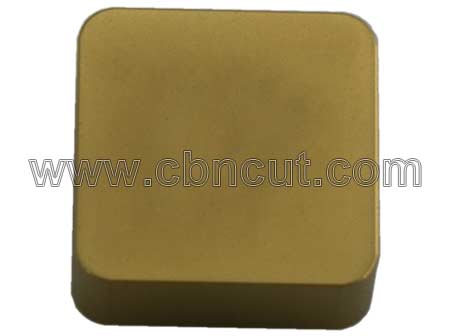

Coated CBN Insert C06 SNGN Solid CBN
CBN C06 coating inserts makes the SNGN and SNMN solid CBN inserts more wearable in bearing steel,hardened steel and alloy steel workpiece cutting.
Some of the popular ordered sizes of the C06 coated solid CBN inserts:
SNGN120408 SNGN120412 SNGN120416 SNGN120708 SNGN120712 SNGN120716 SNGN150712 SNGN150716 SNGN190716 SNGN201020
SNMN120408 SNMN120412 SNMN120416 SNMN120708 SNMN120712 SNMN120716 SNMN150712 SNMN150716 SNMN190716 SNMN201020
| ISO | Inch | L | S | r |
| SNGN 090304 | 321 | 9.525 | 3.18 | 0.4 |
| SNGN 090306 | 321.5 | 9.525 | 3.18 | 0.6 |
| SNGN 090308 | 322 | 9.525 | 3.18 | 0.8 |
| SNGN 090312 | 323 | 9.525 | 3.18 | 1.2 |
| SNGN 090316 | 324 | 9.525 | 3.18 | 1.6 |
| SNGN 090404 | 331 | 9.525 | 4.76 | 0.4 |
| SNGN 090408 | 332 | 9.525 | 4.76 | 0.8 |
| SNGN 090412 | 333 | 9.525 | 4.76 | 1.2 |
| SNGN 090416 | 334 | 9.525 | 4.76 | 1.6 |
| SNGN 120404 | 431 | 12.7 | 4.76 | 0.4 |
| SNGN 120408 | 432 | 12.7 | 4.76 | 0.8 |
| SNGN 120412 | 433 | 12.7 | 4.76 | 1.2 |
| SNGN 120416 | 434 | 12.7 | 4.76 | 1.6 |
| SNGN 120706 | 451.5 | 12.7 | 7.94 | 0.6 |
| SNGN 120708 | 452 | 12.7 | 7.94 | 0.8 |
| SNGN 120712 | 453 | 12.7 | 7.94 | 1.2 |
| SNGN 120716 | 454 | 12.7 | 7.94 | 1.6 |
| SNGN 150608 | 542 | 15.875 | 6.35 | 0.8 |
| SNGN 150612 | 543 | 15.875 | 6.35 | 1.2 |
| SNGN 150616 | 544 | 15.875 | 6.35 | 1.6 |
| SNGN 150712 | 553 | 15.875 | 7.94 | 1.2 |
| SNGN 150716 | 554 | 15.875 | 7.94 | 1.6 |
| SNGN 201020 | 20 | 10 | 2.0 | |
| SNGN 201024 | 20 | 10 | 2.4 |
