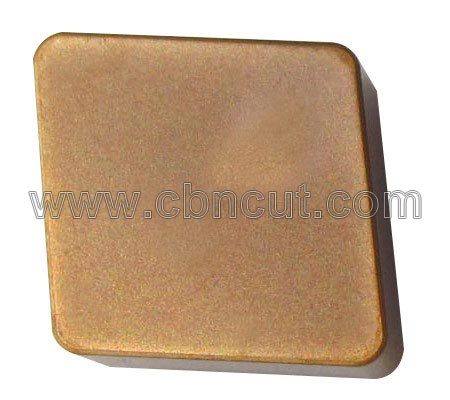

Coated CBN Insert C06 CNGN Solid CBN Insert
We provide CBN coated solid cbn inserts,the coating offer better anti shock resistance for cast iron workpiece cutting and more wearable for hardened steel workpiece cutting.We can do various kinds of coating according to different cutting conditions.
C06 Coating is good for hardened steel turning ,enchance cutting strength and improve the tool life
Popupar ordered sizes:
CNGN120408 CNGN120412 CNGN120416 CNGN120712 CNGN120716 CNGN150718 CNGN150712 CNGN160712 CNGN160716
CNMN120408 CNMN120412 CNMN120416 CNMN120712 CNMN120716 CNMN150718 CNMN150712 CNMN160712 CNMN160716
| ISO | L | IC | S | r |
| CNGN090304 | 9.525 | 9.525 | 4.76 | 0.4 |
| CNGN090308 | 9.525 | 9.525 | 3.18 | 0.8 |
| CNGN090312 | 9.525 | 9.525 | 3.18 | 1.2 |
| CNGN090404 | 9.525 | 9.525 | 4.76 | 0.4 |
| CNGN090408 | 9.525 | 9.525 | 3.18 | 0.8 |
| CNGN090412 | 9.525 | 9.525 | 3.18 | 1.2 |
| CNGN120404 | 12.7 | 12.7 | 4.76 | 0.4 |
| CNGN120408 | 12.7 | 12.7 | 4.76 | 0.8 |
| CNGN120412 | 12.7 | 12.7 | 4.76 | 1.2 |
| CNGN120704 | 12.7 | 12.7 | 7.94 | 0.4 |
| CNGN120708 | 12.7 | 12.7 | 7.94 | 0.8 |
| CNGN120712 | 12.7 | 12.7 | 7.94 | 1.2 |
| CNGN120804 | 12.7 | 12.7 | 8.0 | 0.4 |
| CNGN120806 | 12.7 | 12.7 | 8.0 | 0.6 |
| CNGN120812 | 12.7 | 12.7 | 8.0 | 1.2 |
| CNGN150708 | 15.875 | 15.875 | 7.94 | 0.8 |
| CNGN150712 | 15.875 | 15.875 | 7.94 | 1.2 |
| CNGN150716 | 15.875 | 15.875 | 7.94 | 1.6 |
| CNGN160708 | 15.875 | 15.875 | 7.94 | 0.8 |
| CNGN160712 | 15.875 | 15.875 | 7.94 | 1.2 |
| CNGN160716 | 15.875 | 15.875 | 7.94 | 1.6 |
