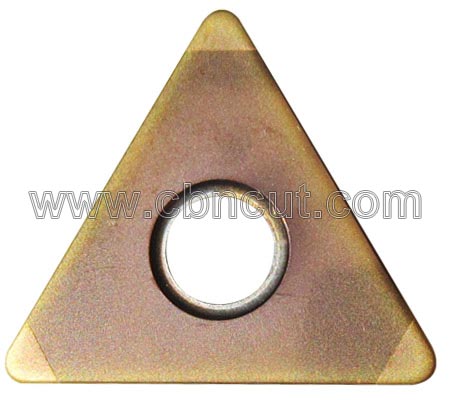

TNGA CBN Inserts
CBN coated inserts PCBN inserts offer better anti shock resistance for cast iron workpiece cutting and will be more wearable for hardened steel workpiece cutting.We can do various kinds of coating according to different cutting conditions.
C06 Coating is good for hardened steel turning ,enchance cutting strength and improve the tool life.
TNGA160404 TNGA160408 TNGA160412 TNGA160416
TNMA160404 TNMA160408 TNMA160412 TNMA160416
TNGA Heavy Turning CBN Inserts Availability:
| ISO | Inch | L | Φ IC | S | Φd |
| TNGA110304 | 221 | 11.0 | 6.35 | 3.18 | 3.81 |
| TNGA110306 | 221.5 | 11.0 | 6.35 | 3.18 | 3.81 |
| TNGA110308 | 222 | 11.0 | 6.35 | 3.18 | 3.81 |
| TNGA110312 | 223 | 11.0 | 6.35 | 3.18 | 3.81 |
| TNGA160404 | 331 | 16.5 | 9.525 | 4.76 | 3.81 |
| TNGA160406 | 331.5 | 16.5 | 9.525 | 4.76 | 3.81 |
| TNGA160408 | 332 | 16.5 | 9.525 | 4.76 | 3.81 |
| TNGA160412 | 333 | 16.5 | 9.525 | 4.76 | 3.81 |
| TNGA160416 | 334 | 16.5 | 9.525 | 4.76 | 3.81 |
| TNGA220404 | 431 | 22.0 | 12.70 | 4.76 | 5.16 |
| TNGA220408 | 432 | 22.0 | 12.70 | 4.76 | 5.16 |
| TNGA220412 | 433 | 22.0 | 12.70 | 4.76 | 5.16 |
