CBN Inserts With Coating C07-Throughly Welded
Strongly welded PCBN Inserts

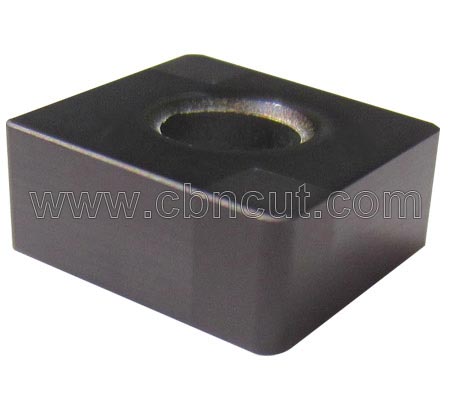

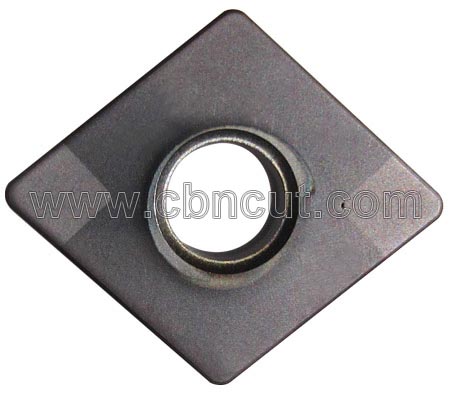

CBN C07 coating on the PCBN Inserts,this is a new coating technique,the C07 coated CBN inserts offer better anti shock resistance for cast iron workpiece cutting.
The CNGA and CNMA PCBN Inserts sizes can be:
CNGA120404 CNGA120408 CNGA120412 CNGA120416
CNGA Heavy Turning CBN Inserts Availability:
| ISO | Inch | L | Φ IC | S | Φ d | r |
| CNGA120404 | 431 | 12 | 12.7 | 4.76 | 5.16 | 0.4 |
| CNGA120408 | 432 | 12 | 12.7 | 4.76 | 5.16 | 0.8 |
| CNGA120412 | 433 | 12 | 12.7 | 4.76 | 5.16 | 1.2 |
| CNGA160404 | 531 | 16 | 15.875 | 4.76 | 5.16 | 0.4 |
| CNGA160408 | 532 | 16 | 15.875 | 4.76 | 5.16 | 0.8 |
| CNGA160412 | 533 | 16 | 15.875 | 4.76 | 5.16 | 1.2 |
