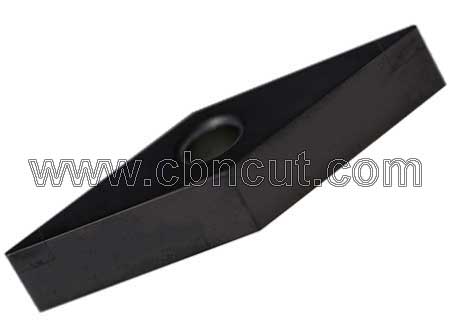

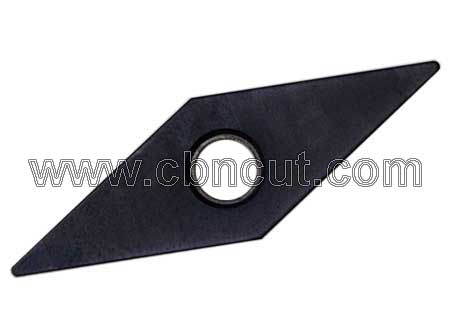

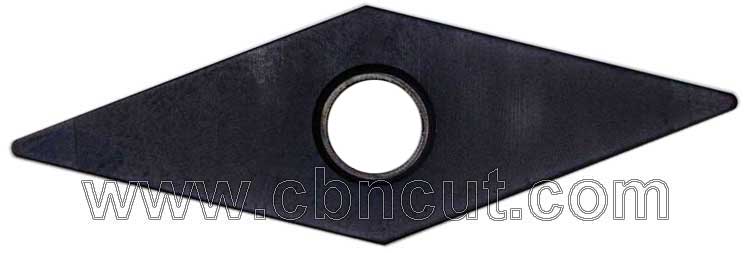

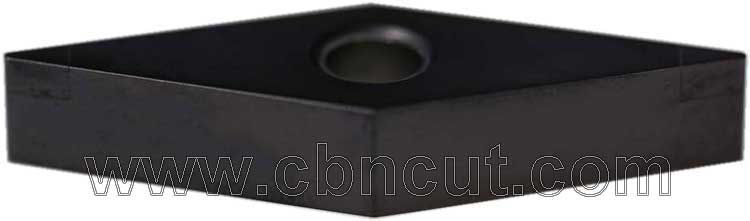

VNGA CBN Inserts
VNGA VNMA PCBN Inserts with coating
CBN C07 coated pcbn inserts offer better anti shock resistance for cast iron workpiece cutting,improve the anti shock resistance
for roller,pump part cutting.
Type and Dimentions:
| ISO | L | IC | s | d | r | b |
| VNGA160402 | 16 | 9.525 | 4.76 | 3.81 | 0.2 | 2.8 |
| VNGA160404 | 16 | 9.525 | 4.76 | 3.81 | 0.4 | 2.8 |
| VNGA160408 | 16 | 9.525 | 4.76 | 3.81 | 0.8 | 2.0 |
| VNGA160412 | 16 | 9.525 | 4.76 | 3.81 | 1.2 | 1.7 |
CBN Grade Availability:
| HBN-01 | HBN-02 | HBN-03 | HBN-04 | HBN-05 | HBN-06 |
| √ | √ | √ | √ | √ | √ |
Standard CBN Cutting Edge:
| T01020 | T02020 | S01020 | S02020 |
| √ | √ | √ | √ |
