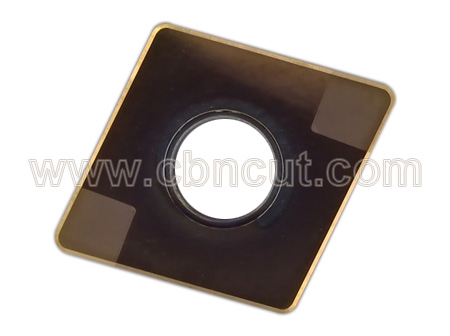

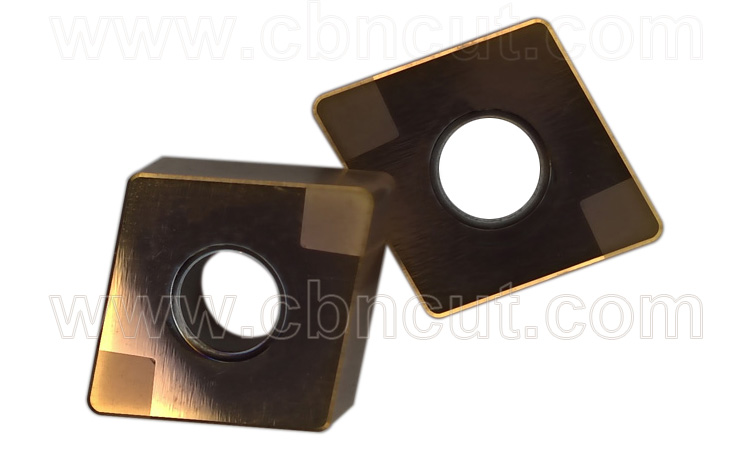

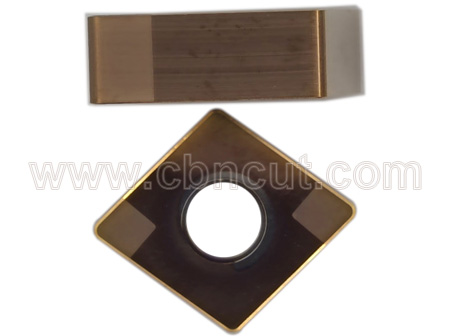

CBN Inserts TIN Coated
CBN coated inserts are the TIN coating on the PCBN Inserts CBN Inserts,they offer better anti shock resistance for hardened steel and bearing steel workpiece cutting .We can also do the TIALN coating according to different cutting conditions.
TIN and TIALN Coating can enchance cutting strength and improve the tool life.
Commonly ordered shapes:
CNGA120404 (CNGA431) CNGA120408 (CNGA432) CNGA120412 (CNGA433) CNGA120416 (CNGA434) etc.
CNMA120404 (CNMA431) CNMA120408 (CNMA432) CNMA120412 (CNMA433) CNMA120416 (CNMA434) etc.
Edge Prep.: T01010 T01015 T01020 S01015 S01020 S02020
CNGA Heavy Turning CBN Inserts Availability:
| ISO | Inch | L | Φ IC | S | Φ d | r |
| CNGA120404 | 431 | 12 | 12.7 | 4.76 | 5.16 | 0.4 |
| CNGA120408 | 432 | 12 | 12.7 | 4.76 | 5.16 | 0.8 |
| CNGA120412 | 433 | 12 | 12.7 | 4.76 | 5.16 | 1.2 |
| CNGA160404 | 531 | 16 | 15.875 | 4.76 | 5.16 | 0.4 |
| CNGA160408 | 532 | 16 | 15.875 | 4.76 | 5.16 | 0.8 |
| CNGA160412 | 533 | 16 | 15.875 | 4.76 | 5.16 | 1.2 |
