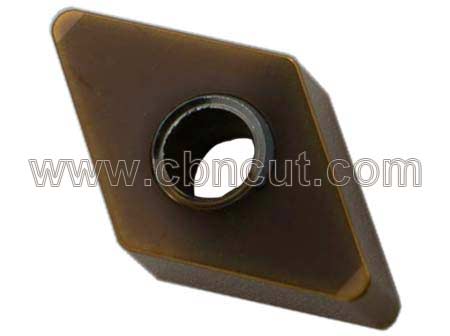

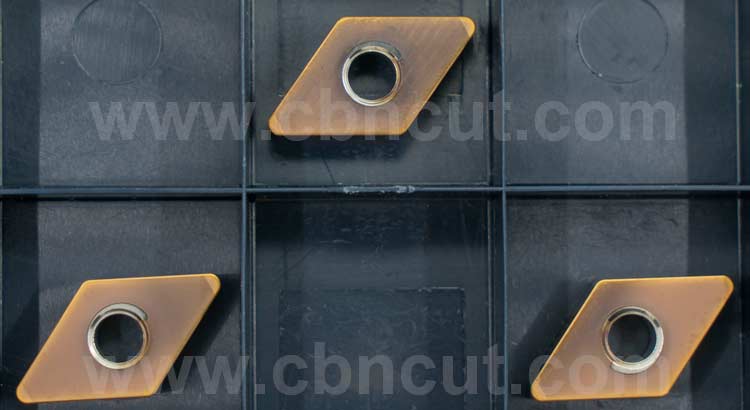

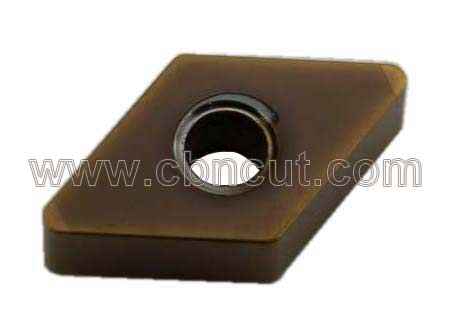

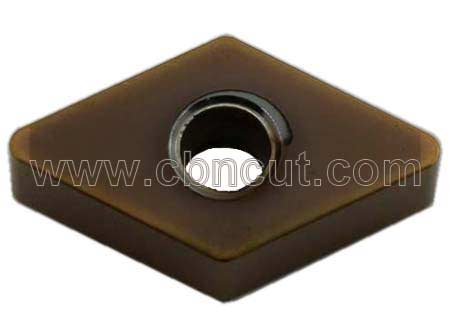

Coated CBN Insert C06 For Hardened Steel DNGA Small Tip For Finish Turning
DNGA CBN coated inserts PCBN Inserts,they offer better anti shock resistance for cast iron workpiece cutting and will be more wearable for hardened steel workpiece cutting.We can do various kinds of coating according to different cutting conditions.
C06 Coating is good for hardened steel turning and bearing steel cutting,it can enchance cutting strength and improve the CBN tool life.
DNGA160404 DNGA160408 DNGA160412 DNGA160416
DNMA160404 DNMA160408 DNMA160412 DNMA160416
DNGA Throughly Welded Heavy Turning CBN Insert Availability:
| DNGA150404 | 431 | 15.875 | 12.7 | 4.76 | 0.4 |
| DNGA150408 | 432 | 15.875 | 12.7 | 4.76 | 0.8 |
| DNGA150412 | 433 | 15.875 | 12.7 | 4.76 | 1.2 |
| DNGA150416 | 434 | 15.875 | 12.7 | 4.76 | 1.6 |
| DNGA150604 | 431 | 15.875 | 12.7 | 6.35 | 0.4 |
| DNGA150608 | 432 | 15.875 | 12.7 | 6.35 | 0.8 |
| DNGA150612 | 433 | 15.875 | 12.7 | 6.35 | 1.2 |
| DNGA150616 | 434 | 15.875 | 12.7 | 6.35 | 1.6 |
| DNGA160404 | 431 | 15.875 | 12.7 | 4.76 | 0.4 |
| DNGA160408 | 432 | 15.875 | 12.7 | 4.76 | 0.8 |
| DNGA160412 | 433 | 15.875 | 12.7 | 4.76 | 1.2 |
| DNGA160416 | 434 | 15.875 | 12.7 | 4.76 | 1.6 |
