TNGA CBN Inserts PCBN Inserts

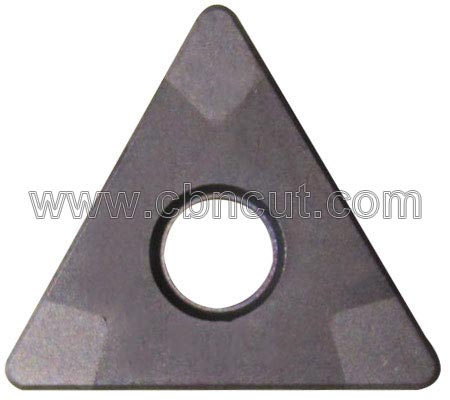

TNGA CBN Insert is triangle shaped CBN with a hole in the insert center.
CBN C07 coating inserts offer better anti shock resistance for cast iron workpiece cutting.
TNGA160404 TNGA160408 TNGA160412 TNGA160416
TNMA160404 TNMA160408 TNMA160412 TNMA160416

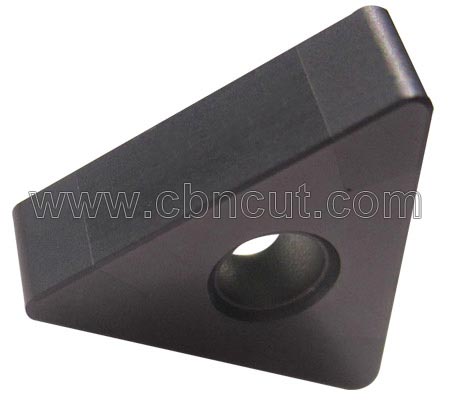

TNGA Heavy Turning CBN Inserts Availability:
| ISO | Inch | L | Φ IC | S | Φd |
| TNGA110304 | 221 | 11.0 | 6.35 | 3.18 | 3.81 |
| TNGA110306 | 221.5 | 11.0 | 6.35 | 3.18 | 3.81 |
| TNGA110308 | 222 | 11.0 | 6.35 | 3.18 | 3.81 |
| TNGA110312 | 223 | 11.0 | 6.35 | 3.18 | 3.81 |
| TNGA160404 | 331 | 16.5 | 9.525 | 4.76 | 3.81 |
| TNGA160406 | 331.5 | 16.5 | 9.525 | 4.76 | 3.81 |
| TNGA160408 | 332 | 16.5 | 9.525 | 4.76 | 3.81 |
| TNGA160412 | 333 | 16.5 | 9.525 | 4.76 | 3.81 |
| TNGA160416 | 334 | 16.5 | 9.525 | 4.76 | 3.81 |
| TNGA220404 | 431 | 22.0 | 12.70 | 4.76 | 5.16 |
| TNGA220408 | 432 | 22.0 | 12.70 | 4.76 | 5.16 |
| TNGA220412 | 433 | 22.0 | 12.70 | 4.76 | 5.16 |
