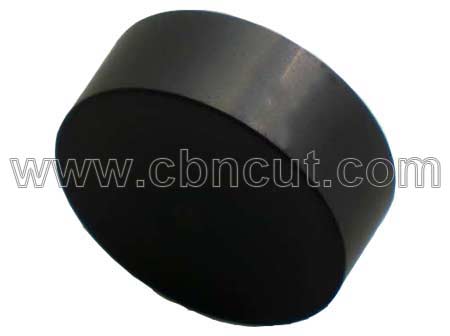

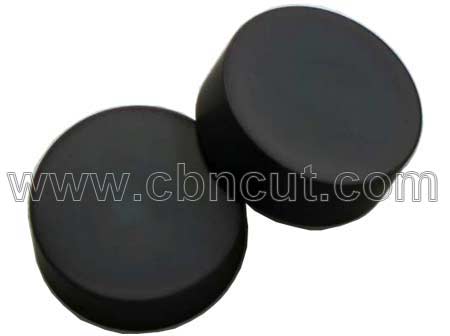

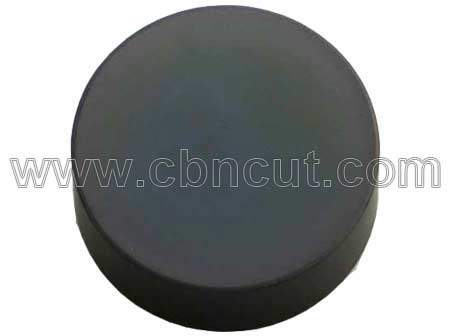

RNGN C07 Coated Solid CBN Inserts
CBN C07 coated solid cbn inserts offer better anti shock resistance for cast iron workpiece cutting,improve the anti shock resistance and make insert longer life.
Some of the popular ordered sizes:
RNGN090300 RNGN120400 RNGN120700 RNGN150700 RNGN190400 RNGN190700 RNGN201000 RNGN251000
RNMN090300 RNMN120400 RNMN120700 RNMN150700 RNMN190400 RNMN190700 RNMN201000 RNMN251000
Mainly sizes of solid CBN insert,solid PCBN inserts chart as follows,the other sizes and shapes also available upon request,please feel free to send E-mail to us or chat with us through WhatsApp +86-13875858570,we will send you reply immediately with our solutions,we will also send you free samples for testing if you can send us the insert size you are using or tell us your cutting condition.
Our E-mail address is : sales@cbncut.com
| ISO | L | IC | S |
| RNGN 060300 | 6.35 | 6.35 | 3.18 |
| RNGN 060400 | 6.35 | 6.35 | 4.76 |
| RNGN 090300 | 9.525 | 9.525 | 3.18 |
| RNGN 090400 | 9.525 | 9.525 | 4.76 |
| RNGN 120400 | 12.7 | 12.7 | 4.76 |
| RNGN 120600 | 12.7 | 12.7 | 6.35 |
| RNGN 120700 | 12.7 | 12.7 | 7.94 |
| RNGN 150700 | 15.875 | 15.875 | 7.94 |
| RNGN 160700 | 16.0 | 16.0 | 7.94 |
| RNGN 190400 | 19.05 | 19.05 | 4.76 |
| RNGN 190700 | 19.05 | 19.05 | 7.94 |
| RNGN 200700 | 20.0 | 20.0 | 7.94 |
| RNGN 200800 | 20.0 | 20.0 | 8.00 |
| RNGN 201000 | 20.0 | 20.0 | 10.00 |
| RNGN 250600 | 25.4 | 25.4 | 6.35 |
| RNGN 250700 | 25.4 | 25.4 | 7.94 |
| RNGN 250800 | 25.4 | 25.4 | 8.00 |
| RNGN 251000 | 25.4 | 25.4 | 10.00 |
| RNGN 251200 | 25.4 | 25.4 | 12.00 |
