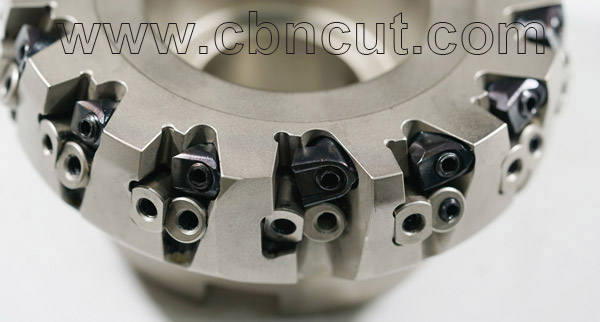

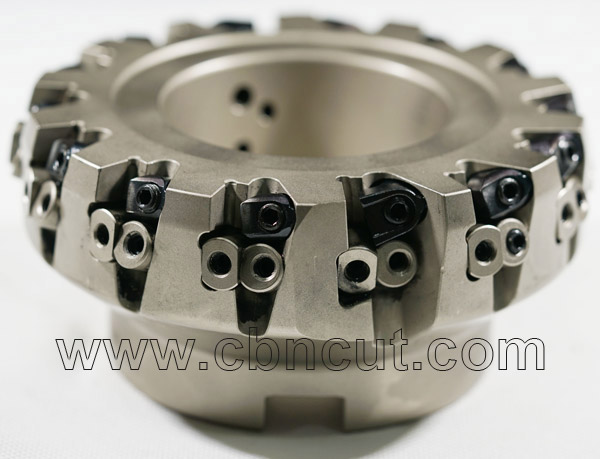

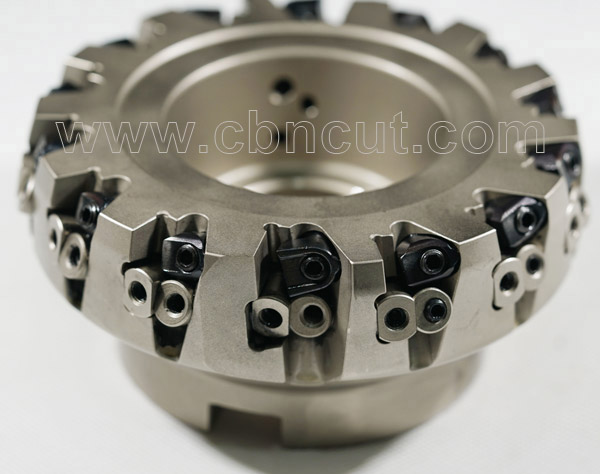

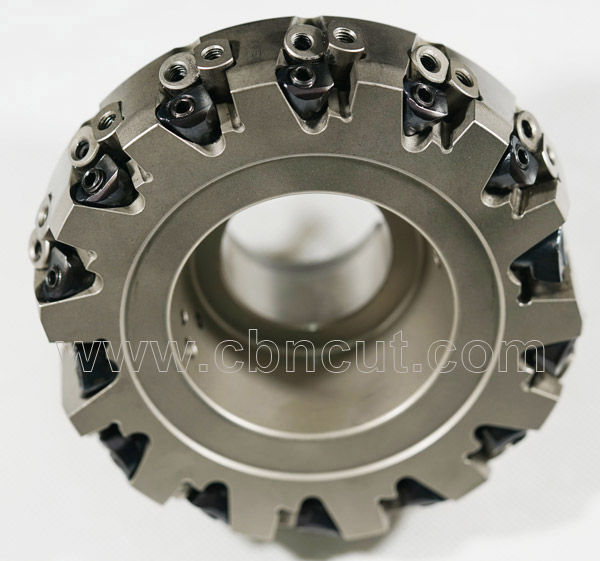

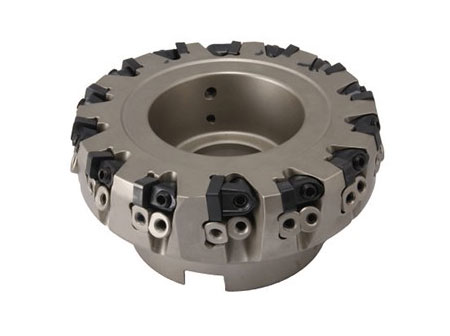

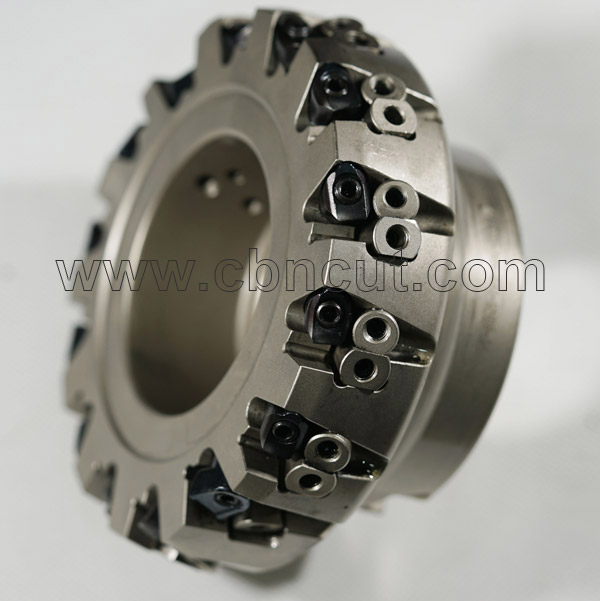

RME03 Indexable CBN Surface Milling Cutter
Milling cutter with solid cbn inserts for milling applications.
Used in automotive engine crlinder milling.The inserts is with high precision and with wiper on insert edge to improve the surface roughness.

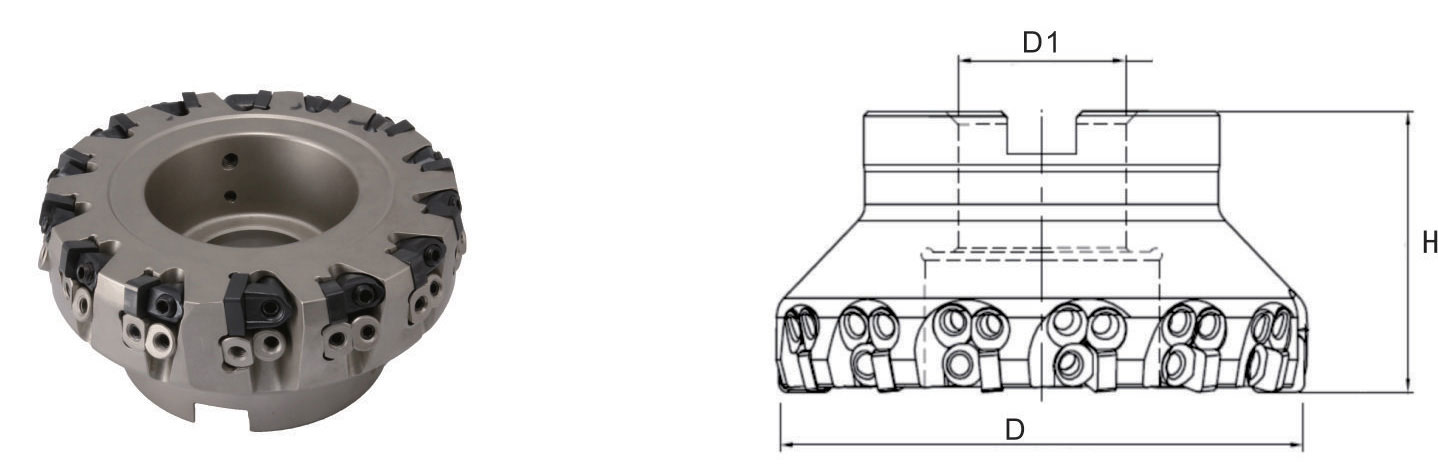

| Cutter Code | Tooth Number | Size | |||
| Milling Inserts | Wiper Inserts | ΦD | ΦD1 | H | |
| RME03-063-A22-SN09-07 | 6 | 1 | 63 | 22 | 40 |
| RME03-080-A27-SN09-09 | 8 | 1 | 80 | 27 | 50 |
| RME03-100-B32-SN09-12 | 10 | 2 | 100 | 32 | 50 |
| RME03-125-B40-SN09-14 | 12 | 2 | 125 | 40 | 63 |
| RME03-160-B40-SN09-18 | 15 | 3 | 160 | 40 | 63 |
| RME03-200-C60-SN09-24 | 20 | 4 | 200 | 60 | 63 |
| RME03-250-C60-SN09-30 | 25 | 5 | 250 | 60 | 63 |
| RME03-315-D60-SN09-36 | 30 | 6 | 315 | 60 | 70 |

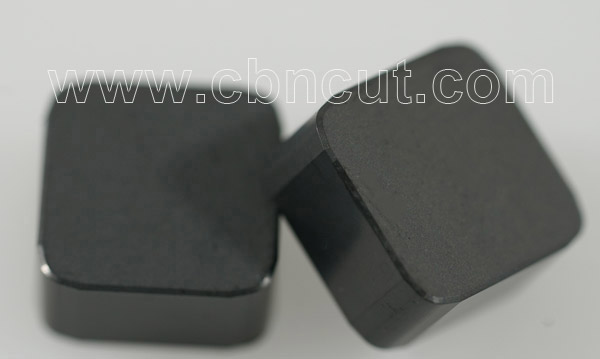

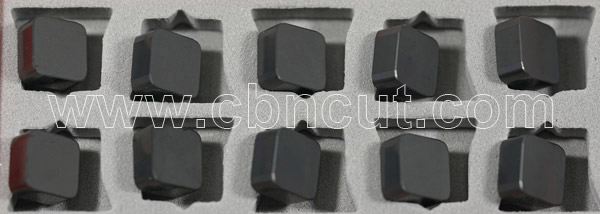

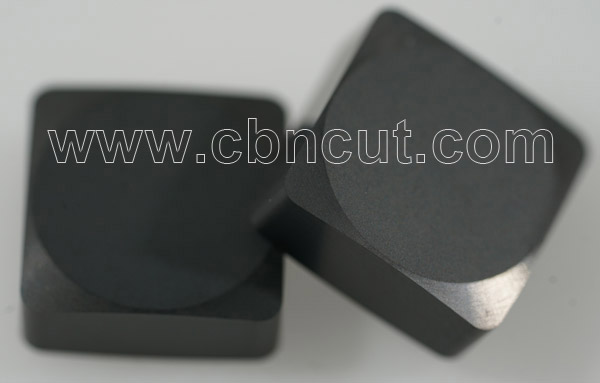

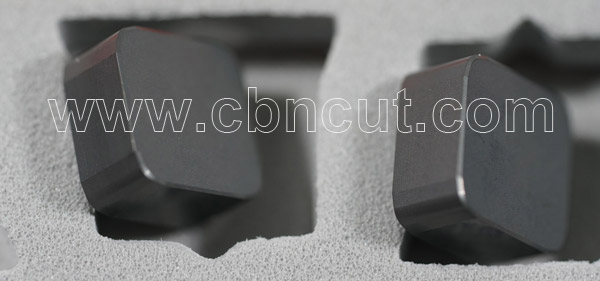

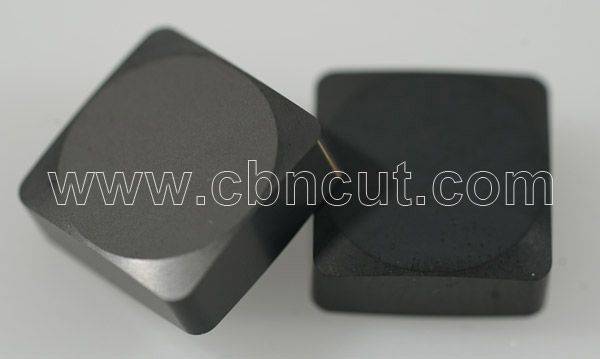

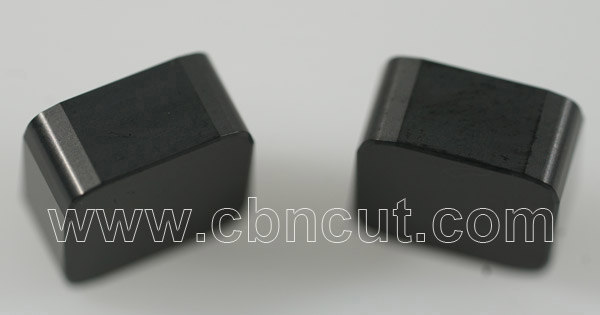

Solid CBN Insert fit for the cutter : SNEN0904ENS and SNEX1204Z
