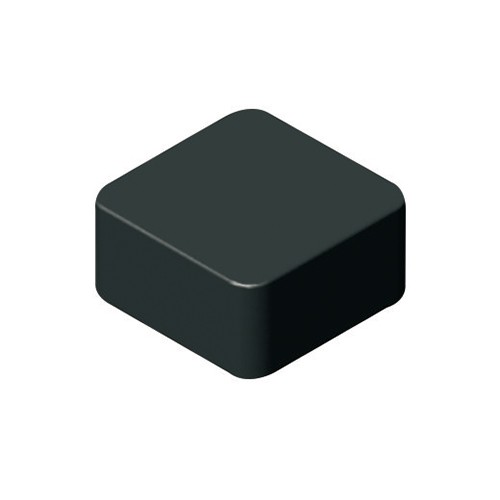

SNEN0904-XGR CBN Milling Insert,PCBN Milling Insert
SNEN CBN (Cubic Boron Nitride) insert for cast iron machining with high-speed cutting,gray cast iron,automotive engine cylinder and cover etc,the PCBN content is 6-12um particle size and CBN content is 95%,the CBN grade show good cutting life.
SNEN0904 solid CBN insert,PCBN insert used in machining or milling the workpiece of High hardened steel,Cast Iron, high-chromium, high-Mn Steel and other high hard material parts.

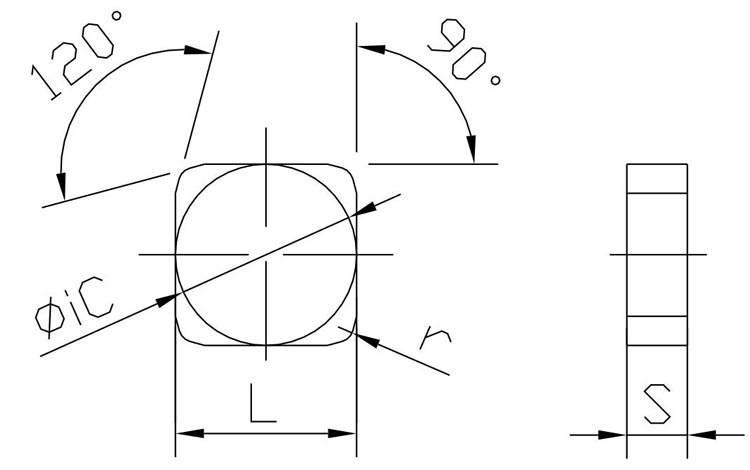

| Specification | Dimention (mm) | |||
| ISO | L | IC | S | r |
| SNEN0904 XGR | 9 | 9.525 | 4.76 | 0.8 |
| SNEN1207 XGR | 12 | 12.7 | 7.94 | 1.2 |
Wiper edge length 0.6-0.8mm
ISO size of the insert: SNEN0904 SNEN1207
Inscribed circle diameter (IC) 9.525mm and 12.7mm
Insert Thickness:4.76mm for 0904 and 7.94mm for 1207
CBN material grade: RBN200 RBN300
Cutting edges: 8
Seat code of the cutter SNEN0904 SNEN1207
Insert size and shape SNEN09014 SNEN1207
Insert included angle 90.0 deg
CBN also called PCBN
CBN Corner radius 0.80mm
Insert seat size code SNEN09
Feed:0.15mm-0.20mm per tooth
Cutting Speed:1400m/min
Coolant:Dry cutting
RPM 6800-6980 rev/min
Application: Grey cast iron
Machining process: Rough
Delivery time : 10-15 days
SNEN CBN (Cubic Boron Nitride) insert for cast iron machining with high-speed cutting,gray cast iron,automotive engine cylinder and cover etc,the PCBN content is 6-12um particle size and CBN content is 95%,the CBN grade show good cutting life.
