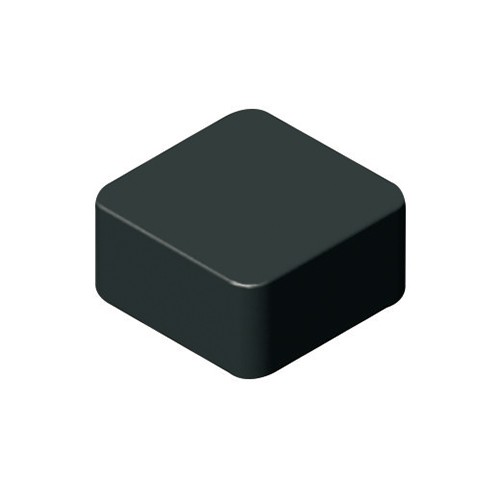

SNEN1207-XGR CBN Milling Insert,PCBN Milling Insert
SNEN CBN (Cubic Boron Nitride) insert for cast iron machining with high-speed cutting,gray cast iron,automotive engine cylinder and cover etc,the PCBN content is 6-12um particle size and CBN content is 95%,the CBN grade show good cutting life.
SNEN1207 solid CBN insert,PCBN insert used in machining or milling the workpiece of High hardened steel,Cast Iron, high-chromium, high-Mn Steel and other high hard material parts.
| Specification | Dimention (mm) | |||
| ISO | L | IC | S | r |
| SNEN0904 XGR | 9 | 9.525 | 4.76 | 0.8 |
| SNEN1207 XGR | 12 | 12.7 | 7.94 | 1.2 |
Wiper edge length 0.6-0.8mm
ISO size of the insert: SNEN1207
Inscribed circle diameter (IC) 12.7mm
Insert Thickness:7.94mm for 1207
CBN material grade: RBN200
Cutting edges: 8
Seat code of the cutter SNEN1207
Insert size and shape SNEN1207
Insert included angle 90.0 deg
CBN also called PCBN
CBN Corner radius 0.80mm
Insert seat size code SNEN1207
Feed:0.15mm-0.20mm per tooth
Cutting Speed:1400m/min
Coolant:Dry cutting
RPM 6800-6980 rev/min
Application: Grey cast iron
Machining process: Rough
Delivery time : 10-15 days
SNEN CBN (Cubic Boron Nitride) insert for cast iron machining with high-speed cutting,gray cast iron,automotive engine cylinder and cover etc,the PCBN content is 6-12um particle size and CBN content is 95%,the CBN grade show good cutting life.
