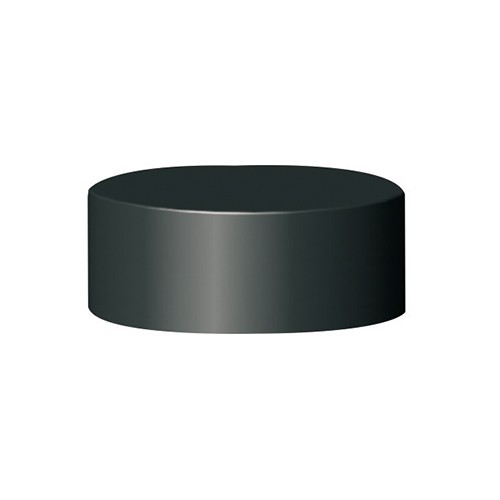

RNEN CBN Milling Insert
RNEN CBN milling insert used in the milling cutters,the milling inserts can be used in surface milling ,flat milling,profile milling.

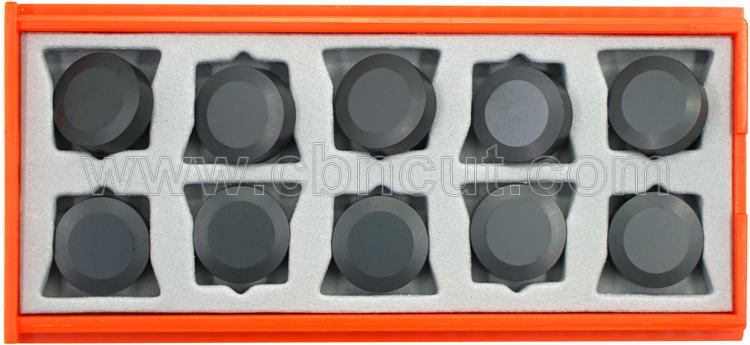

The RNEN or RNGN solid CBN milling insert also called full CBN insert,now widely used in milling the pump surface,hard steel surface or alloy workpiece surface.
The sizes can RNGN120400,RNEN120400,RNGN090300 and more,edge prep can be S01225,S02020,S05020,S10020 etc.
We can choose the CBN grade and the appropriate edge prep. according the cutting and machining condition.

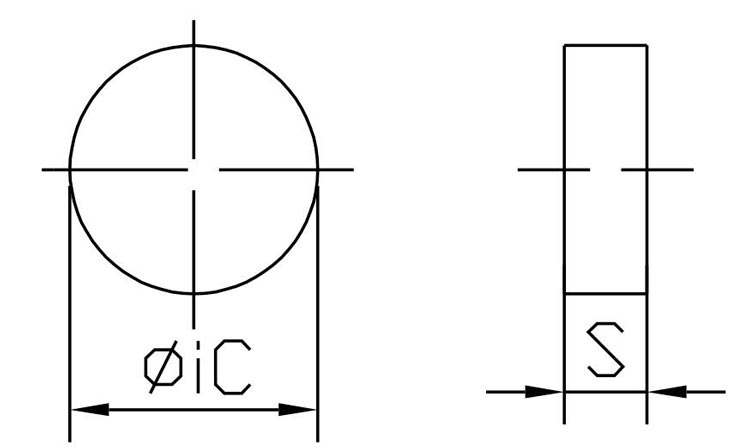

| Specification | Dimention(mm) | |||
| ISO | L | IC | S | r |
| RNEN0903 | 9 | 9.525 | 3.18 | 0 |
| RNEN0904 | 9 | 9.525 | 4.76 | 0 |
| RNEN1207 | 12 | 12.76 | 7.94 | 0 |
