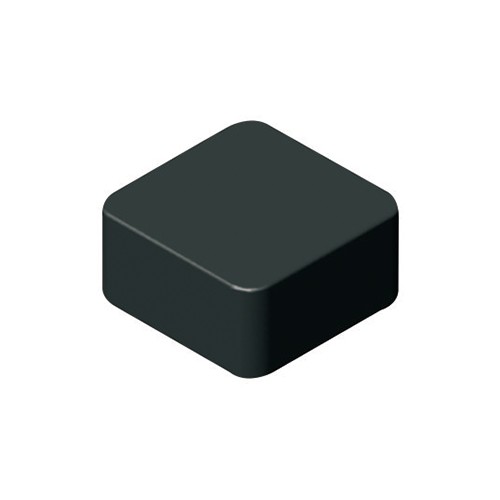

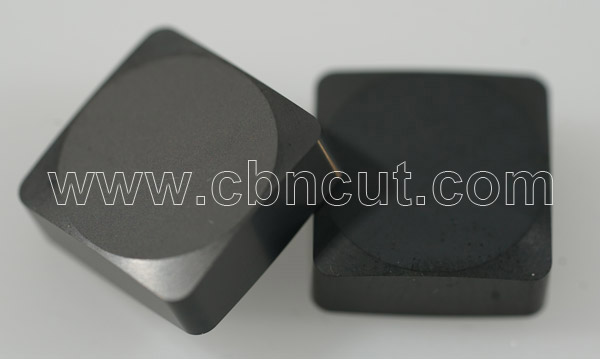

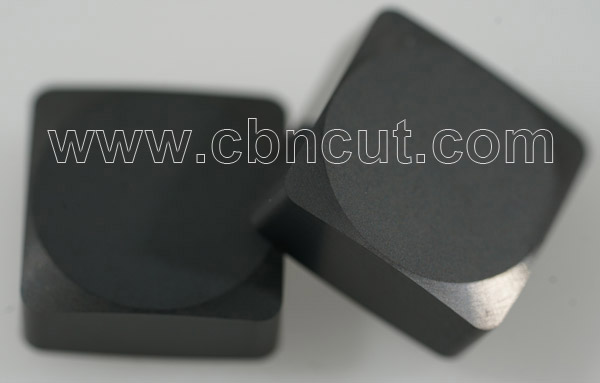

SNEN1204-EDE Milling Insert

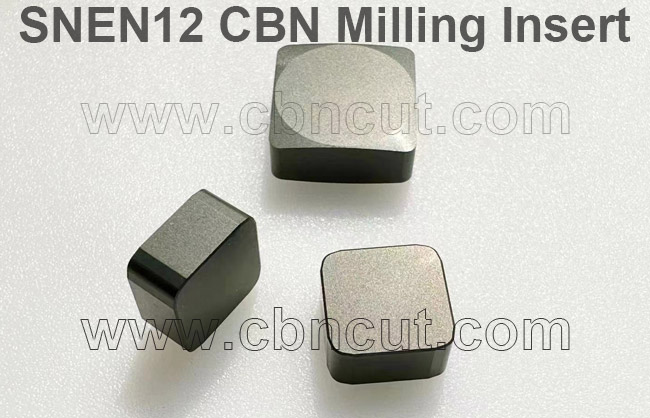

SNEN1204 CBN milling insert PCBN milling insert.
SNEN1204 CBN (Cubic Boron Nitride) insert for cast iron machining with high-speed cutting,gray cast iron,automotive engine cylinder and cover etc,the PCBN content is 6-12um particle size and CBN content is 95%,the CBN grade show good cutting life.

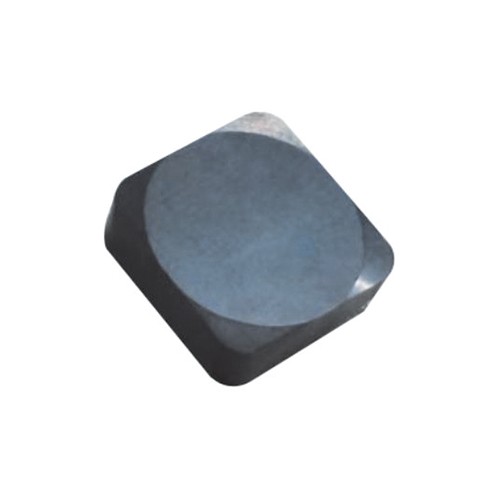

SNEN1204 solid CBN insert,PCBN insert used in machining or milling the workpiece of High hardened steel,Cast Iron, high-chromium, high-Mn Steel and other high hard material parts.

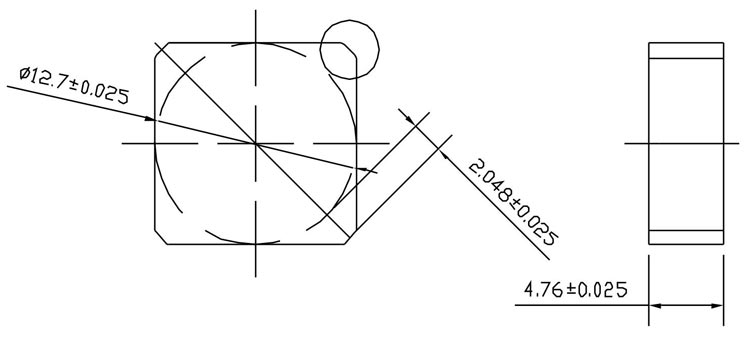

| Specification | Dimention (mm) | |||
| ISO | L | IC | S | |
| SNEN1204EDE | 12 | 12.7 | 4.76 | |
Wiper edge length 0.8mm
ISO size of the insert: SNEN1204ENS-M08
Inscribed circle diameter (IC) 12.7mm
Insert Thickness:4.76mm
CBN material grade: RBN200
Cutting edges: 8
Seat code of the cutter SNEN1204,SNGN1204
Insert size and shape SNEN1204
Insert included angle 90.0 deg
CBN Grade RBN200
CBN also called PCBN
CBN Corner radius 0.80mm
Insert seat size code SNEN12
Feed:0.15mm per tooth
Cutting Speed:1400m/min
Coolant:Dry cutting
RPM 6800-6980rev/min
Application: Grey cast iron
Machining process: Rough
Delivery time : 10-15 days
SNEN CBN (Cubic Boron Nitride) insert for cast iron machining with high-speed cutting,gray cast iron,automotive engine cylinder and cover etc,the PCBN content is 6-12um particle size and CBN content is 95%,the CBN grade show good cutting life.
