Solid CBN insert SNEN0903ENS-M08
CBN Milling Insert
For rough milling - fits CBN milling cutters,this insert is with wiper for better surface milling .

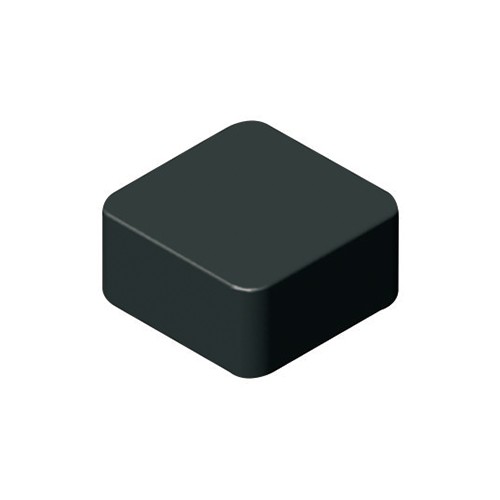

SNEN CBN (Cubic Boron Nitride) insert for cast iron machining with high-speed cutting,gray cast iron,automotive engine cylinder and cover,the PCBN grain size is 6-12um particle size and CBN content is 95%,this CBN grade show good cutting life.

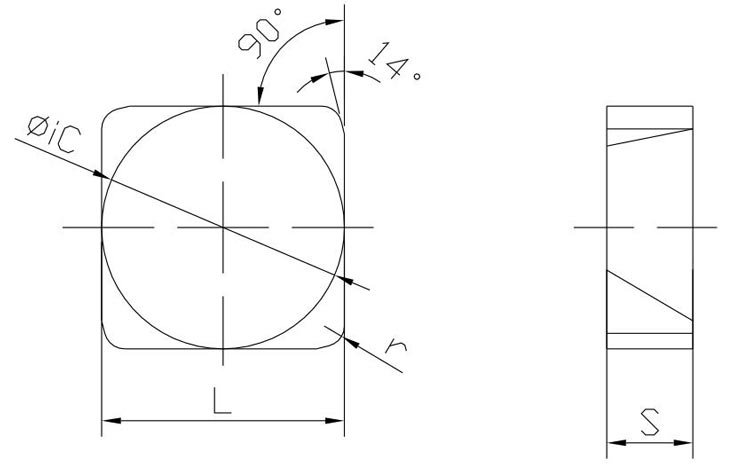

| Specification | Dimention(mm) | |||
| ISO | L | IC | S | r |
| SNEN0903ENS | 9 | 9.525 | 3.18 | 0.8 |
| SNEN0904ENS | 9 | 9.525 | 4.76 | 0.8 |

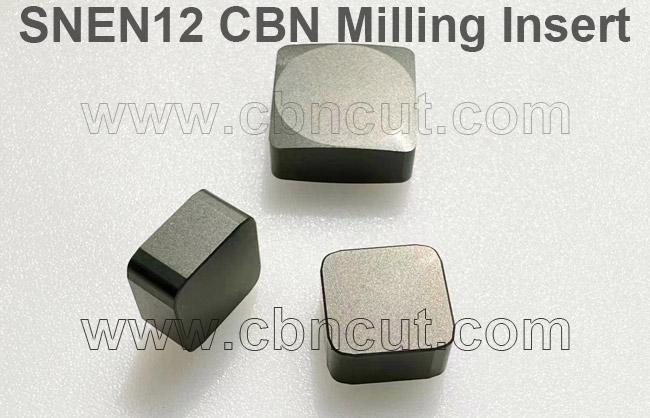

| SNEN1207ENS | 12 | 12.7 | 7.94 | 1.2 |
| SNEN120712 | 12 | 12.7 | 7.94 | 1.2 |
| SNEN19T6ENS | 19 | 19.05 | 6.8 | 1.6 |

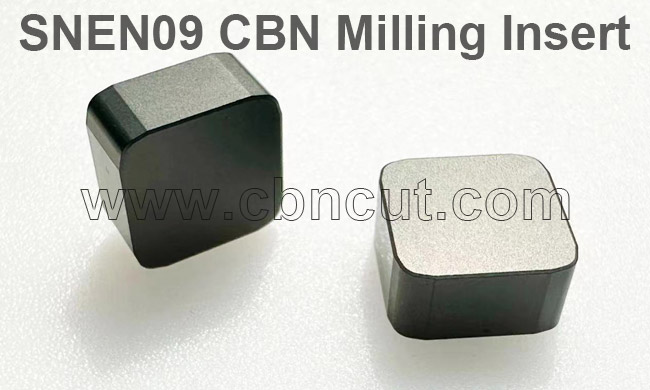

Solid CBN insert SNEN0903ENS-M08
SNEN0903ENS-M06
For rough milling - fits CBN milling cutters
SNEN0903 Grade PCBN Milling Insert Uncoated, 0.1252" Thick, 3/8" Inscribed Circle
SNEN 0903 ENS-M08 solid CBN insert,PCBN insert used in machining or milling the workpiece of High hardened steel,Cast Iron, high-chromium, high-Mn Steel and other high hard material parts.
This SNEN 0903 ENS-M08 solid CBN insert used in one milling cutter of 6 pieces or 8 pieces or 10 pieces.
This CBN inserts used for milling the automotive engine cylinder head,cast iron workpiece.
SNEN0903ENS
SNEX120312ZZ
Some install 8 pieces the SNEN0903ENS and 2 pieces SNEX120312ZZ total 10 pieces on a milling cutter.
This is a standard insert to used for this milling process.
Solid CBN Inserts for milling the cast iron automotive engine cylinder head.
SNEN0903ENS (generally install 8 pieces in the milling cutter)
SNEX120312ZZ (generally install 2 pieces with SNEN0903 in the milling cutter)
We sell them to our domestic and foreign automotive engine manufacturer with good feedback and regular orders.
Fine finishing/finishing/semi-finishing could get long life, stable performance, excellent cutting effficiency.
ISO size of the insert: SNEN0903ENS-M08
Inscribed circle diameter (IC) 9.525mm
Insert Thickness:3.18mm
CBN material grade: RBN200
Cutting edges: 8
Wiper edge length 0.8mm
Seat code of the cutter SN0903
Insert size and shape SNEN0903
Insert included angle 90.0 deg
CBN Grade RBN200
CBN also called PCBN
CBN Corner radius 0.80mm
Insert seat size code SNEN09
Feed:0.15mm per tooth
Cutting Speed:1400m/min
Coolant:Dry cutting
RPM 6800-6980rev/min
Application: Grey cast iron
Machining process: Rough
Delivery time : 10-15 days
