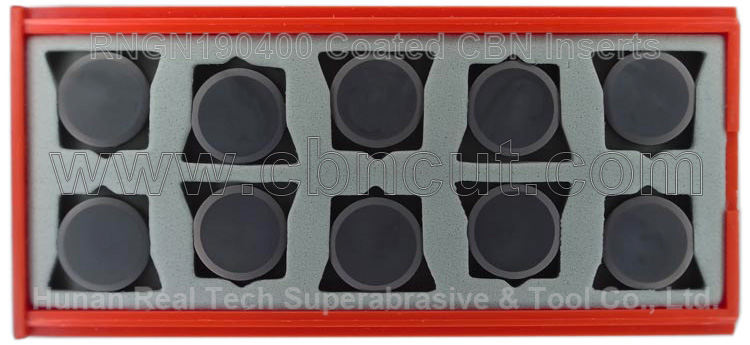

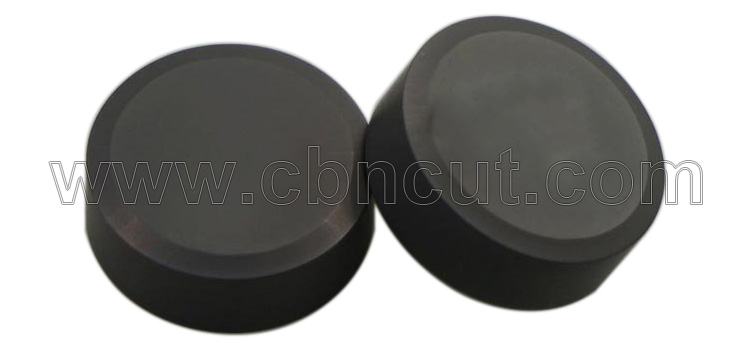

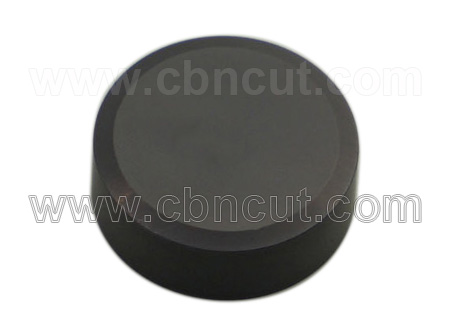

RNGN190400 Coated Solid CBN Inserts
Coated solid cbn inserts offer better anti shock resistance for cast iron workpiece cutting,the coating protect the CBN edge from breaking during turning and milling process also provide the insert with longer life.
Sizes can be RNGN120700 RNGN120400 RNGN190400 RNGN190700 etc.
Application:Pump parts turning and milling,Roller turning,Cast iron and hardened steel workpiece turning and milling.
Mainly sizes of solid CBN insert,solid PCBN inserts chart as follows,the other sizes and shapes also available upon request,please feel free to send E-mail to us or chat with us through WhatsApp +86-13875858570,we will send you reply immediately with our solutions,we will also send you free samples for testing if you can send us the insert size you are using or tell us your cutting condition.
Our E-mail address is : sales@cbncut.com
The main RNGN or RNMN solid CBN inserts sizes are as follows,we can make new sizes according to your request like RCGN,RPGN etc.
| ISO | L | IC | S |
| RNGN 060300 | 6.35 | 6.35 | 3.18 |
| RNGN 060400 | 6.35 | 6.35 | 4.76 |
| RNGN 090300 | 9.525 | 9.525 | 3.18 |
| RCGN 090300 | 9.525 | 9.525 | 3.18 |
| RPGN 090300 | 9.525 | 9.525 | 3.18 |
| RNGN 090400 | 9.525 | 9.525 | 4.76 |
| RNGN 120400 | 12.7 | 12.7 | 4.76 |
| RNGN 120600 | 12.7 | 12.7 | 6.35 |
| RNGN 120700 | 12.7 | 12.7 | 7.94 |
| RNGN 150700 | 15.875 | 15.875 | 7.94 |
| RNGN 160700 | 16.0 | 16.0 | 7.94 |
| RNGN 190400 | 19.05 | 19.05 | 4.76 |
| RNGN 190700 | 19.05 | 19.05 | 7.94 |
| RNGN 200700 | 20.0 | 20.0 | 7.94 |
| RNGN 200800 | 20.0 | 20.0 | 8.00 |
| RNGN 201000 | 20.0 | 20.0 | 10.00 |
| RNGN 250600 | 25.4 | 25.4 | 6.35 |
| RNGN 250700 | 25.4 | 25.4 | 7.94 |
| RNGN 250800 | 25.4 | 25.4 | 8.00 |
| RNGN 251000 | 25.4 | 25.4 | 10.00 |
| RNGN 251200 | 25.4 | 25.4 | 12.00 |
| RNGN 301000 | 30.0 | 30.0 | 10.0 |
