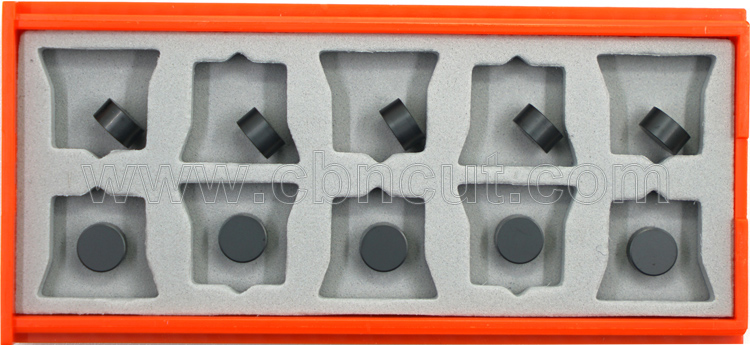

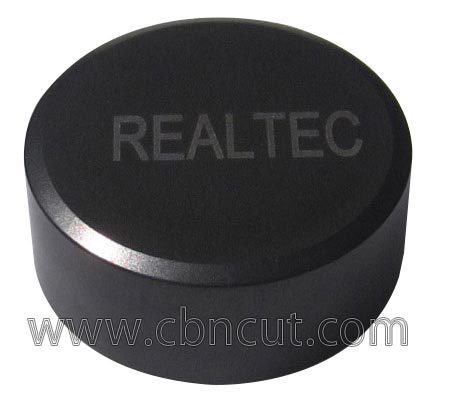

RNMN060300 Solid CBN Insert
RNMN060300 solid CBN inserts used in turning and milling process,solid CBN inserts suitable for cast iron roller,HSS roller,pump parts,hardened steel,bearing steel rings,automotive engine,brake disk,brake drum,sand and water pump,alloy machining.
CBN edge preparation can be : Sharp edge T01010 S01020 S01225 S02020 etc.

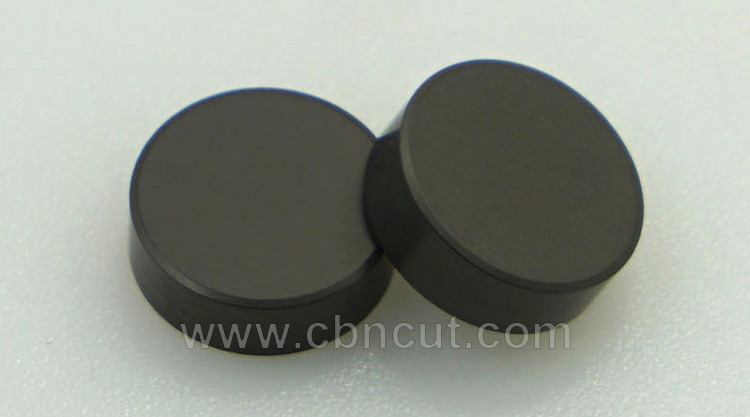

RNMN060300 PCBN Insert diameter is 6.35mm and thickness is 3.18mm.
Other sizes of RNMN Solid CBN Insert
RNMN060400 RNMN090300 RNMN090400 RNMN120300 RNMN120400 RNMN120600 RNMN120700 RNMN150700 RNMN150800 RNMN160700 RNMN190400 RNMN190700 RNMN191000 RNMN200700 RNMN200800 RNMN201000 RNMN250700 RNMN250800 RNMN251000
RNGN060400 RNGN090300 RNGN090400 RNGN120300 RNGN120400 RNGN120600 RNGN120700 RNGN150700 RNGN150800 RNGN160700 RNGN190400 RNGN190700 RNGN191000 RNGN200700 RNGN200800 RNGN201000 RNGN250700 RNMN250800 RNGN251000
Mainly sizes of solid CBN insert,solid PCBN inserts chart as follows,the other sizes and shapes also available upon request,please feel free to send E-mail to us or chat with us through WhatsApp +86-13875858570,we will send you reply immediately with our solutions,we will also send you free samples for testing if you can send us the insert size you are using or tell us your cutting condition.
Our E-mail address is : sales@cbncut.com
| ISO | L | IC | S |
| RNGN 060300 | 6.35 | 6.35 | 3.18 |
| RNGN 060400 | 6.35 | 6.35 | 4.76 |
| RNGN 090300 | 9.525 | 9.525 | 3.18 |
| RNGN 090400 | 9.525 | 9.525 | 4.76 |
| RNGN 120400 | 12.7 | 12.7 | 4.76 |
| RNGN 120600 | 12.7 | 12.7 | 6.35 |
| RNGN 120700 | 12.7 | 12.7 | 7.94 |
| RNGN 150700 | 15.875 | 15.875 | 7.94 |
| RNGN 160700 | 16.0 | 16.0 | 7.94 |
| RNGN 190400 | 19.05 | 19.05 | 4.76 |
| RNGN 190700 | 19.05 | 19.05 | 7.94 |
| RNGN 200700 | 20.0 | 20.0 | 7.94 |
| RNGN 200800 | 20.0 | 20.0 | 8.00 |
| RNGN 201000 | 20.0 | 20.0 | 10.00 |
| RNGN 250600 | 25.4 | 25.4 | 6.35 |
| RNGN 250700 | 25.4 | 25.4 | 7.94 |
| RNGN 250800 | 25.4 | 25.4 | 8.00 |
| RNGN 251000 | 25.4 | 25.4 | 10.00 |
| RNGN 251200 | 25.4 | 25.4 | 12.00 |
